Spring Batch Hello World Example 專案

Spring Batch Hello World Example 專案本範例實作說明：本篇主要使用 Spring Batch，做一個基本測試專案，此Batch 為讀取csv檔轉換為 xml檔的功能。使用到 Spring Batch 的 ItemReader、ItemProcessor和ItemWriter 。也將 Spring Batch job metadata 加入，但本例不說明(另文說明)。一、範例開發準備工具作業系統：Windows 7 開發工具：Eclipse Java EE IDE for Web Developers Juno Service Release2 JAVA JDK : JDK1.7.0_60 Database: Postgresql 9.3 其它相關：Maven 4.0 Springframework 4.1.3.RELEASE Springframework batch 3.0.2.RELEASE 二、新增Maven範例專案範例專案名稱：SpringBatchHelloWorldExample 圖1 開啟Eclipse -> File -> New -> Maven Project

圖2 選擇專案存放位置 use default Workspase location-> Next 選擇存放在預設的工作資料夾下(就是你開Eclipse時，選擇Workspase下)

圖3 使用 Maven 範本本例選用： Group id : org.apache.maven.archetypes Artifact id : maven-archetype-quickstart Version : 1.1 -> Next 註: Group id為公司名稱 or 群組分類名稱 Artifact Id 為專案標識符，就是專案名稱

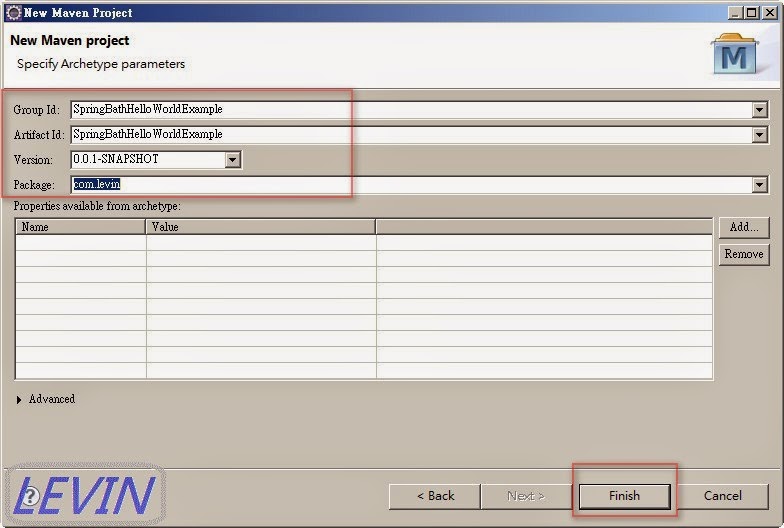

圖4 範例專案 Group id : SpringBatchHelloWorldExample Artifact id : SpringBatchHelloWorldExample Version : 0.0.1-SNAPSHOT Package : com.levin -> Finish

圖5 新增專案後，基本預設資料

二、使用相關jar檔圖6 開啟 pom.xml

pom.xml內容：

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
 <modelVersion>4.0.0</modelVersion>

 <groupId>SpringBathHelloWorldExample</groupId>
 <artifactId>SpringBathHelloWorldExample</artifactId>
 <version>0.0.1-SNAPSHOT</version>
 <packaging>jar</packaging>

 <name>SpringBathHelloWorldExample</name>
 <url>http://maven.apache.org</url>

 <!-- 1、設定 properties 參數資料 -->
 <properties>
  <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
  <jdk.version>1.7</jdk.version>
  <spring.version>4.1.3.RELEASE</spring.version>
  <spring.batch.version>3.0.2.RELEASE</spring.batch.version>
  <junit.version>4.11</junit.version>
 </properties>
 <!-- 2、設定 dependencies -->
 <dependencies>

  <!-- Spring Core -->
  <dependency>
   <groupId>org.springframework</groupId>
   <artifactId>spring-core</artifactId>
   <version>${spring.version}</version>
  </dependency>

  <!-- Spring jdbc, for database -->
  <dependency>
   <groupId>org.springframework</groupId>
   <artifactId>spring-jdbc</artifactId>
   <version>${spring.version}</version>
  </dependency>

  <!-- Spring XML to/back object -->
  <dependency>
   <groupId>org.springframework</groupId>
   <artifactId>spring-oxm</artifactId>
   <version>${spring.version}</version>
  </dependency>

  <!-- postgresql database driver -->
  <dependency>
   <groupId>org.postgresql</groupId>
   <artifactId>postgresql</artifactId>
   <version>9.3-1100-jdbc41</version>
  </dependency>

  <!-- Spring Batch dependencies -->
  <dependency>
   <groupId>org.springframework.batch</groupId>
   <artifactId>spring-batch-core</artifactId>
   <version>${spring.batch.version}</version>
  </dependency>
  <dependency>
   <groupId>org.springframework.batch</groupId>
   <artifactId>spring-batch-infrastructure</artifactId>
   <version>${spring.batch.version}</version>
  </dependency>

  <!-- Spring Batch unit test -->
  <dependency>
   <groupId>org.springframework.batch</groupId>
   <artifactId>spring-batch-test</artifactId>
   <version>${spring.batch.version}</version>
  </dependency>

  <!-- Junit -->
  <dependency>
   <groupId>junit</groupId>
   <artifactId>junit</artifactId>
   <version>${junit.version}</version>
   <scope>test</scope>
  </dependency>

 </dependencies>
 <!-- 3.執行及建置 -->
 <build>
  <finalName>SpringBathHelloWorldExample</finalName>
  <plugins>
   <plugin>
    <groupId>org.apache.maven.plugins</groupId>
    <artifactId>maven-eclipse-plugin</artifactId>
    <version>2.9</version>
    <configuration>
     <downloadSources>true</downloadSources>
     <downloadJavadocs>false</downloadJavadocs>
    </configuration>
   </plugin>
   <plugin>
    <groupId>org.apache.maven.plugins</groupId>
    <artifactId>maven-compiler-plugin</artifactId>
    <version>3.2</version>
    <configuration>
     <source>${jdk.version}</source>
     <target>${jdk.version}</target>
    </configuration>
   </plugin>
  </plugins>
 </build>
</project>

三、相關resoures 建立resoures 路徑 src/main/resoures 建立設定檔存放路徑 src/main/resoures/config 建立資料庫資訊檔存放路徑 src/main/resoures/config/database 建立Spring batch 設定檔存放路徑 src/main/resoures/config/springbatch 建立匯入csv測試資料檔存放路徑 src/main/resoures/csv 圖7 建立相關 resoures

圖8 將 resoures 加入到 source folders on build path 在專案按右鍵 -> Properties

圖9 進入Properties介面 -> Java Build Path -> Source -> Add Folder.. ->進入 Source Folder Selection介面 -> 選擇打勾 resoures -> OK -> OK

四、建立資料庫資訊檔 database.xml src/main/resoures/config/database/database.xml database.xml內容：

  <beans xmlns="http://www.springframework.org/schema/beans"
   xmlns:jdbc="http://www.springframework.org/schema/jdbc" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
    http://www.springframework.org/schema/jdbc
    http://www.springframework.org/schema/jdbc/spring-jdbc-3.2.xsd">


   <!-- database 連線設定 -->
   <bean id="dataSource"
    class="org.springframework.jdbc.datasource.DriverManagerDataSource">
    <property name="driverClassName" value="org.postgresql.Driver" />
    <property name="url" value="jdbc:postgresql://127.0.0.1:5433/springTest" />
    <property name="username" value="postgres" />
    <property name="password" value="postgres" />
   </bean>

   <bean id="transactionManager"
    class="org.springframework.batch.support.transaction.ResourcelessTransactionManager" />

   <jdbc:initialize-database data-source="dataSource">
    <jdbc:script
     location="org/springframework/batch/core/schema-drop-postgresql.sql" />
    <jdbc:script location="org/springframework/batch/core/schema-postgresql.sql" />
   </jdbc:initialize-database>

  </beans>

五、建立Spring batch 設定檔存放路徑 src/main/resoures/config/springbatch/jobs-context.xml src/main/resoures/config/springbatch/spring-batch.xml jobs-context.xml內容：

<beans xmlns="http://www.springframework.org/schema/beans"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation="
  http://www.springframework.org/schema/beans
  http://www.springframework.org/schema/beans/spring-beans-4.0.xsd">

 <!--設定 JOB 及 database 的關係-->
 <bean id="jobRepository"
  class="org.springframework.batch.core.repository.support.JobRepositoryFactoryBean">
  <property name="dataSource" ref="dataSource" />
  <property name="transactionManager" ref="transactionManager" />
  <property name="databaseType" value="POSTGRES" />
 </bean>

 <bean id="jobLauncher"
  class="org.springframework.batch.core.launch.support.SimpleJobLauncher">
  <property name="jobRepository" ref="jobRepository" />
 </bean>

</beans>

spring-batch.xml內容：

<beans xmlns="http://www.springframework.org/schema/beans"
 xmlns:batch="http://www.springframework.org/schema/batch" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation="http://www.springframework.org/schema/batch
  http://www.springframework.org/schema/batch/spring-batch-3.0.xsd
  http://www.springframework.org/schema/beans
  http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
 ">

 <import resource="jobs-context.xml" />
 <import resource="../database/database.xml" />

 <!-- 設定model -->
 <bean id="report" class="com.levin.model.Report" scope="prototype" />
 <!-- 設定item Processor -->
 <bean id="itemProcessor" class="com.levin.ReportItemProcessor" />

 <!-- -->
 <batch:job id="helloWorldJob">
  <batch:step id="step1">
   <batch:tasklet>
    <batch:chunk reader="csvFileItemReader" writer="xmlItemWriter"
     processor="itemProcessor" commit-interval="10">
    </batch:chunk>
   </batch:tasklet>
  </batch:step>
 </batch:job>

 <bean id="csvFileItemReader" class="org.springframework.batch.item.file.FlatFileItemReader">
  <!-- 取得csv資料 -->
  <property name="resource" value="classpath:csv/reportData.csv" />

  <property name="lineMapper">
   <bean class="org.springframework.batch.item.file.mapping.DefaultLineMapper">
    <property name="lineTokenizer">
     <bean
      class="org.springframework.batch.item.file.transform.DelimitedLineTokenizer">
      <!-- 設定欄位名稱 -->
      <property name="names" value="id,sales,qty,staffName,date" />
     </bean>
    </property>
    <property name="fieldSetMapper">
     <!-- 設定檔案讀取程式 -->
     <bean class="com.levin.ReportFieldSetMapper" />
    </property>
   </bean>
  </property>

 </bean>

 <!-- 設定寫出資料程式 -->
 <bean id="xmlItemWriter" class="org.springframework.batch.item.xml.StaxEventItemWriter">
  <!-- 寫出資料存放位置 -->
  <property name="resource" value="file:xml/outputs/report.xml" />
  <property name="marshaller" ref="reportMarshaller" />
  <property name="rootTagName" value="report" />
 </bean>
 <!-- 設定寫出xml 的 model -->
 <bean id="reportMarshaller" class="org.springframework.oxm.jaxb.Jaxb2Marshaller">
  <property name="classesToBeBound">
   <list>
    <value>com.levin.model.Report</value>
   </list>
  </property>
 </bean>


</beans>

六、建立匯入csv測試資料檔資料存放位置： src/main/resoures/csv/reportData.csv 1001,"213,12",980,levin , 2013/1/02 1002,"220,20",1080,tom 1 , 2013/2/4 1003,"252,19",2200,tom 2 , 2013/11/10 1003,"248,19",1500,tom 3 , 2013/10/20 1003,"552,18",2800,tom 4 , 2013/6/15 1003,"323,78",1900,tom 5 , 2013/5/12 七、相關java程式圖10 相關java程式

八、建立model Report.java 檔案路徑： src/main/java/com/levin/model/Report.java

package com.levin.model;

import java.math.BigDecimal;
import java.util.Date;

import javax.xml.bind.annotation.XmlAttribute;
import javax.xml.bind.annotation.XmlElement;
import javax.xml.bind.annotation.XmlRootElement;
/**
 * 訂單報表
 */
@XmlRootElement(name = "record")
public class Report {

 /**
  * 編號
  */
 private int id;
 /**
  * 銷售
  */
 private BigDecimal sales;
 /**
  * 數量
  */
 private int qty;
 /**
  * 銷售人員名稱
  */
 private String staffName;
 /**
  * 日期
  */
 private Date date;

 @XmlAttribute(name = "id")
 public int getId() {
  return id;
 }

 public void setId(int id) {
  this.id = id;
 }

 @XmlElement(name = "sales")
 public BigDecimal getSales() {
  return sales;
 }

 public void setSales(BigDecimal sales) {
  this.sales = sales;
 }

 @XmlElement(name = "qty")
 public int getQty() {
  return qty;
 }

 public void setQty(int qty) {
  this.qty = qty;
 }

 @XmlElement(name = "staffName")
 public String getStaffName() {
  return staffName;
 }

 public void setStaffName(String staffName) {
  this.staffName = staffName;
 }

 public Date getDate() {
  return date;
 }

 public void setDate(Date date) {
  this.date = date;
 }

 @Override
 public String toString() {
  return "Report [id=" + id + ", sales=" + sales + ", qty=" + qty + ", staffName=" + staffName + "]";
 }

}

九、建立讀資料程式 ReportFieldSetMapper.java 檔案路徑： src/main/java/com/levin/ReportFieldSetMapper.java

package com.levin;

import java.text.ParseException;
import java.text.SimpleDateFormat;

import org.springframework.batch.item.file.mapping.FieldSetMapper;
import org.springframework.batch.item.file.transform.FieldSet;
import org.springframework.validation.BindException;

import com.levin.model.Report;

public class ReportFieldSetMapper implements FieldSetMapper {

 private SimpleDateFormat dateFormat = new SimpleDateFormat("yyyy/MM/dd");

 public Report mapFieldSet(FieldSet fieldSet) throws BindException {

  Report report = new Report();
  report.setId(fieldSet.readInt(0));
  report.setSales(fieldSet.readBigDecimal(1));
  report.setQty(fieldSet.readInt(2));
  report.setStaffName(fieldSet.readString(3));

  //fieldSet.readDate(4); //預設的 format yyyy-MM-dd
  String date = fieldSet.readString(4);
  try {
   report.setDate(dateFormat.parse(date));
  } catch (ParseException e) {
   e.printStackTrace();
  }

  return report;

 }

}

十、建立讀取資料項目程式 ReportItemProcessor.java 檔案路徑： src/main/java/com/levin/ReportItemProcessor.java

package com.levin;

import org.springframework.batch.item.ItemProcessor;

import com.levin.model.Report;

public class ReportItemProcessor implements ItemProcessor {

 public Report process(Report item) throws Exception {

  System.out.println("執行中..." + item);
  return item;
 }

}

十一、建立執行測試程式 App.java 檔案路徑： src/main/java/com/levin/App.java

package com.levin;

import org.springframework.batch.core.Job;
import org.springframework.batch.core.JobExecution;
import org.springframework.batch.core.JobParameters;
import org.springframework.batch.core.launch.JobLauncher;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

public class App {
 public static void main(String[] args) {

  String[] springConfig  =
   {
    "config/springbatch/spring-batch.xml"
   };

  ApplicationContext context =
    new ClassPathXmlApplicationContext(springConfig);

  JobLauncher jobLauncher = (JobLauncher) context.getBean("jobLauncher");
  Job job = (Job) context.getBean("helloWorldJob");

  try {

   JobExecution execution = jobLauncher.run(job, new JobParameters());
   System.out.println("執行狀態 : " + execution.getStatus());

  } catch (Exception e) {
   e.printStackTrace();
  }

  System.out.println("執行程式結束。");

 }
}

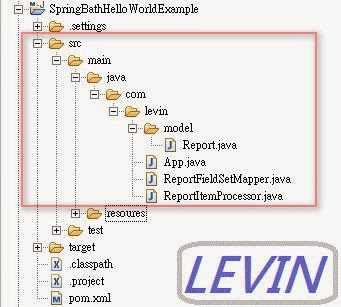

十二、專案建立完成圖11 專案建立完成，程式及資料清單

SpringBathHelloWorldExample/ src/main/java/com/levin/model/Report.java src/main/java/com/levin/App.java src/main/java/com/levin/ReportFieldSetMapper.java src/main/java/com/levin/ReportItemProcessor.java src/main/resoures/config/database/database.xml src/main/resoures/config/springbatch/jobs-context.xml src/main/resoures/config/springbatch/spring-batch.xml src/main/resoures/csv/reportData.csv 4個java檔程式 3個xml檔 1個csv資料檔請核對是否與本例範例一樣。如不一樣，請往文章尋找。十三、測試 - 確認JDK版本圖12 確認JDK版本。在專案按右鍵 -> Properties ->進入Properties介面 -> Java Build Path -> Libraries

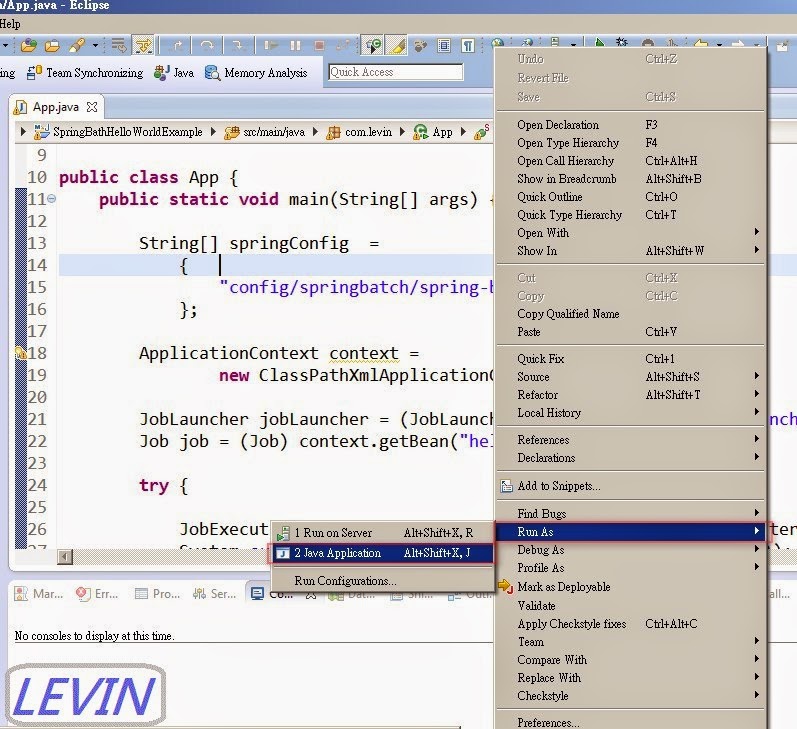

十四、測試 - 執行圖13 在專案按右鍵 -> Run As -> Java Application

圖14 執行結果

圖15 查看匯出的xml檔

十五、參考: 圖16 - Spring Batch 首頁

圖17 - Spring batch docs 說明文件

十六、本站參考: Struts + Spring + Hibernate 目錄

其它文章

PG Levin Li

程式開發學習之路

PG Levin Li 發表在痞客邦留言(0) 人氣(896)

程式開發學習之路

Spring Batch Hello World Example 專案

廣告

B 組廣告版面

個人資訊

熱門文章

文章分類

ZK (1)

SQLite (2)

Java (19)

Android (4)

SSH (12)

Oracle (10)

SQL Server/MSSQL (1)

MySQL (8)

PostgreSQL (1)

Tool (11)

C/C++ (5)

Apache (9)

jQuery (8)

JavaScript (8)

Web/HTML/CSS/JS/JQ (6)

其它 (6)

Win/OS/linux (4)

生活點點 (1)

最新文章

最新留言

動態訂閱

文章精選

文章搜尋

參觀人氣

C 組廣告版面

留言板
